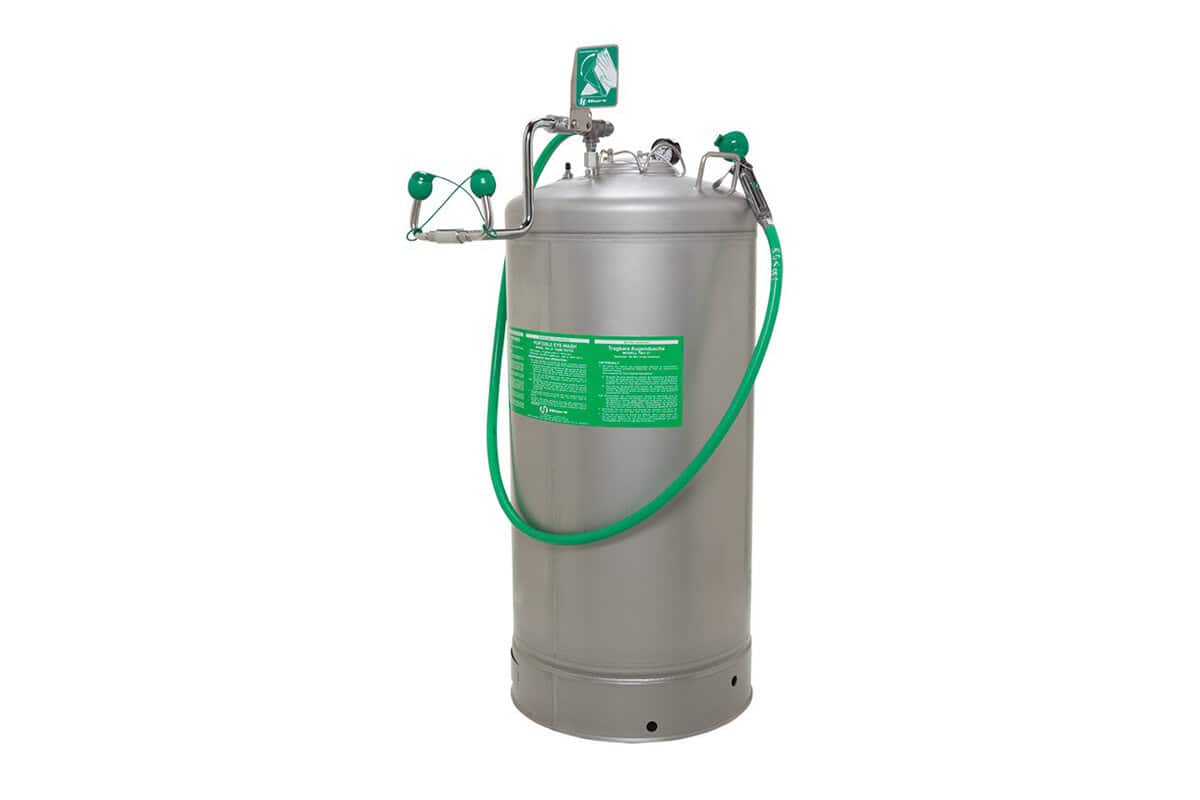

Portable Emergency Air Charged Eyewash

Part Ref: EU-7601.37


Model 7601.37, 37 gallon (140 L) capacity, air pressure operated portable eyewash and body spray with ASME rated tank.



Description

Hazardous chemical spills occur in isolated areas all over the world everyday and, Haws is working to position models like this pressurized 37 gallon (140 L) portable eyewash and body spray in such areas, providing a reliable source of safety for the irrigation process. More specifically, Model 7601.37 is able to do so by combining the use of twin soft-flo eyewash heads with a face and body-spray head.

  • Features a 37 gallon (140 L) ASME rated stainless steel tank
  • Protective measures include: air pressure gauge, pressure relief valve, and tire-type air fill valve
  • Includes a 6 foot (182.9 cm) hose that extends the body-spray reach expanding the unit’s protective capabilities
  • Measurements: 60″ (152.4 cm) high, 27″ (68.6 cm) deep

Technical Details

Model 7601.37 portable air pressure operated eyewash with body spray shall include a stainless steel 37 gallon (140 L) ASME 130 psi (9 bar) rated tank, ABS plastic anti-surge eyewash heads with integral flow controls and dust covers, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, 160 psi (11 bar) air pressure gauge, 110 psi (7.6 bar) air pressure relief valve, and tire-type air fill valve. Unit shall also include squeeze-valve operated body spray, label-mounted operating instructions. Additive not included – Order separately.

Downloads


File File size
pdf Haws Model 7601 37 Specsheet 2021 216 KB
