Description

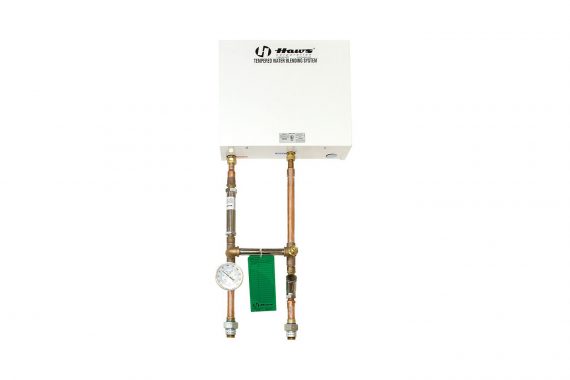

Model TWBS.EW.H An on-demand, prepackaged, fully engineered and tested tempering system to provide tempered water instantaneously. System is designed to increase cold water temperature by a minimum of 34® F (19® C) at 4 gpm (15.1 L) flow and 68® F (38® C) at 2.0 gpm (7.5 L); thus it is suitable for single eyewash application. Outlet water temperature is factory set at 80® F (26® C).
- It is ideal for areas where supply water temperatures fall below 60® F (15® C) while hot water is not present
- System consists of an 20 KW electrical instantaneous water heater, a hot shutoff valve, a bypass valve, an in-line 50 x 50 mesh filter, and an outlet temperature gauge
- Requires 45 – 90 psi (3 – 6 ATM) flowing pressure
- Inlet and Outlet: 1/2″ IPS.
- Electrical Supply: 480 VAC, 3-phase, 3 wire and ground. 24 amp per phase (optional 208/240 3-phase available – ask for quote).
- UL listed for indoor use only.
