Freeze Protected Wall Mount Eyewash

Part Ref: EU-7433FP

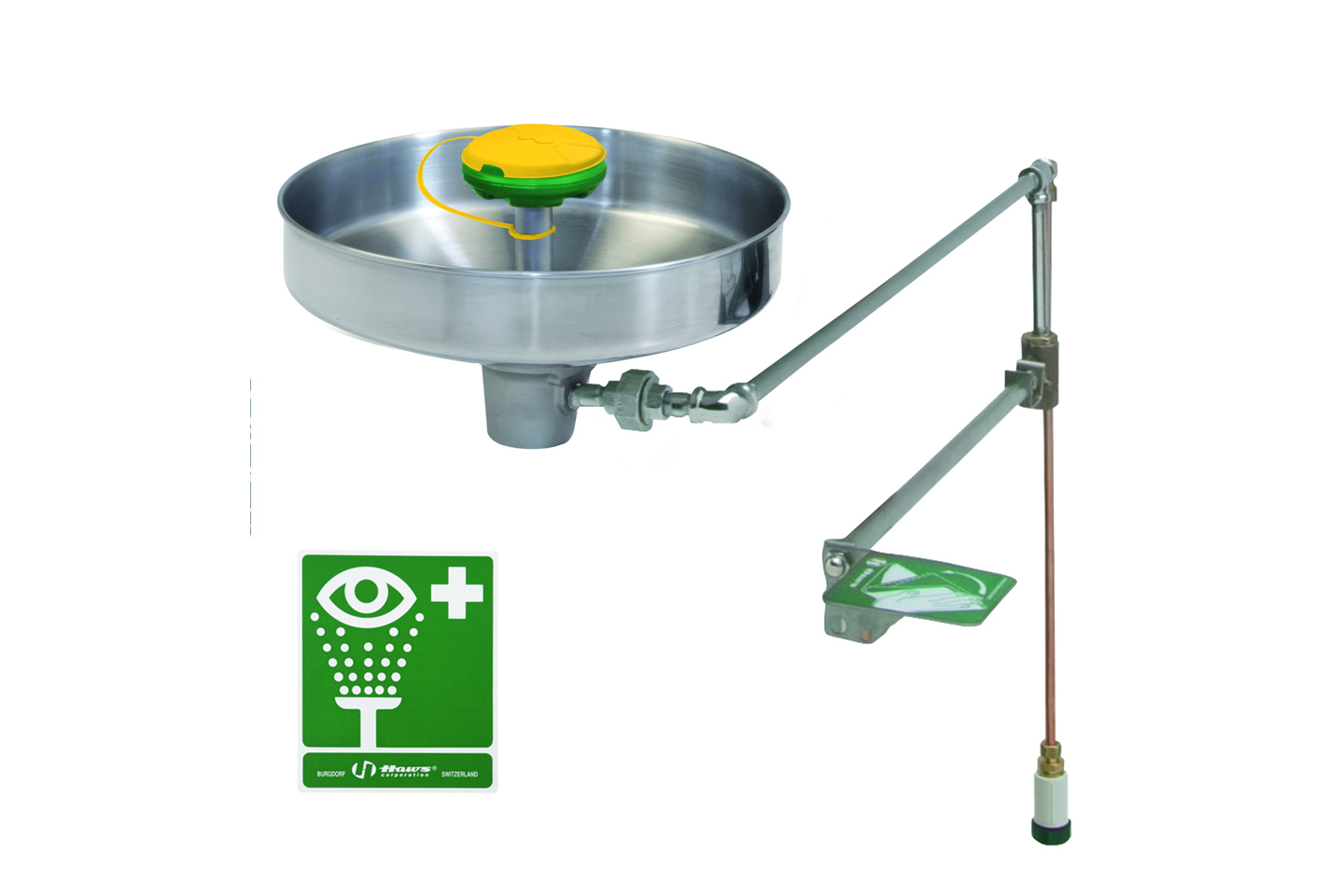

Model 7433FP, wall-mounted, freeze protected eyewash with Soft-Flo heads.



Description

Haws emergency eyewash systems, like the freeze protected 7433FP, use anti-surge Soft-Flo heads that activate with the push of a stainless steel flag. Heads come equipped with pop-off dust covers, so when debris is present, the irrigation process stays protected. Space efficient design and integral wall bracket allow the 7433FP to be mounted in a number of easily accessible locations.

  • A great addition to multiple unsafe environments where the eyes may be exposed to corrosive materials
  • Easily detected and maintained, emergency equipment is equipped with safety sign and test card to record weekly testing
  • Reducing installation time, eyewash and valve assembly is pre-built and fully water/pressure tested
  • Fully functional in freezing environments when installed properly

Technical Details

Model 7433FP freeze protected wall-mounted eyewash shall include a stainless steel 11″ (27.9 cm) round bowl, stainless steel eyewash yoke assembly with Soft-Flo ABS plastic eyewash anti-surge heads with integral flow controls and dust covers, self-draining valve, and brass stay-open ball valve equipped with stainless steel ball and stem, and stem extension. Unit to be used with a maximum wall thickness of 15″ (38.1 cm) and shall include chromate protective cast-aluminum wall bracket, universal sign, 1/2″ NPT inlet, and 1-1/4″ NPT outlet.

Downloads


File File size
pdf Haws Model 7433fp Specsheet 2021 212 KB
