Emergency Freeze Protected Shower and Eyewash

Part Ref: EU-8300FP

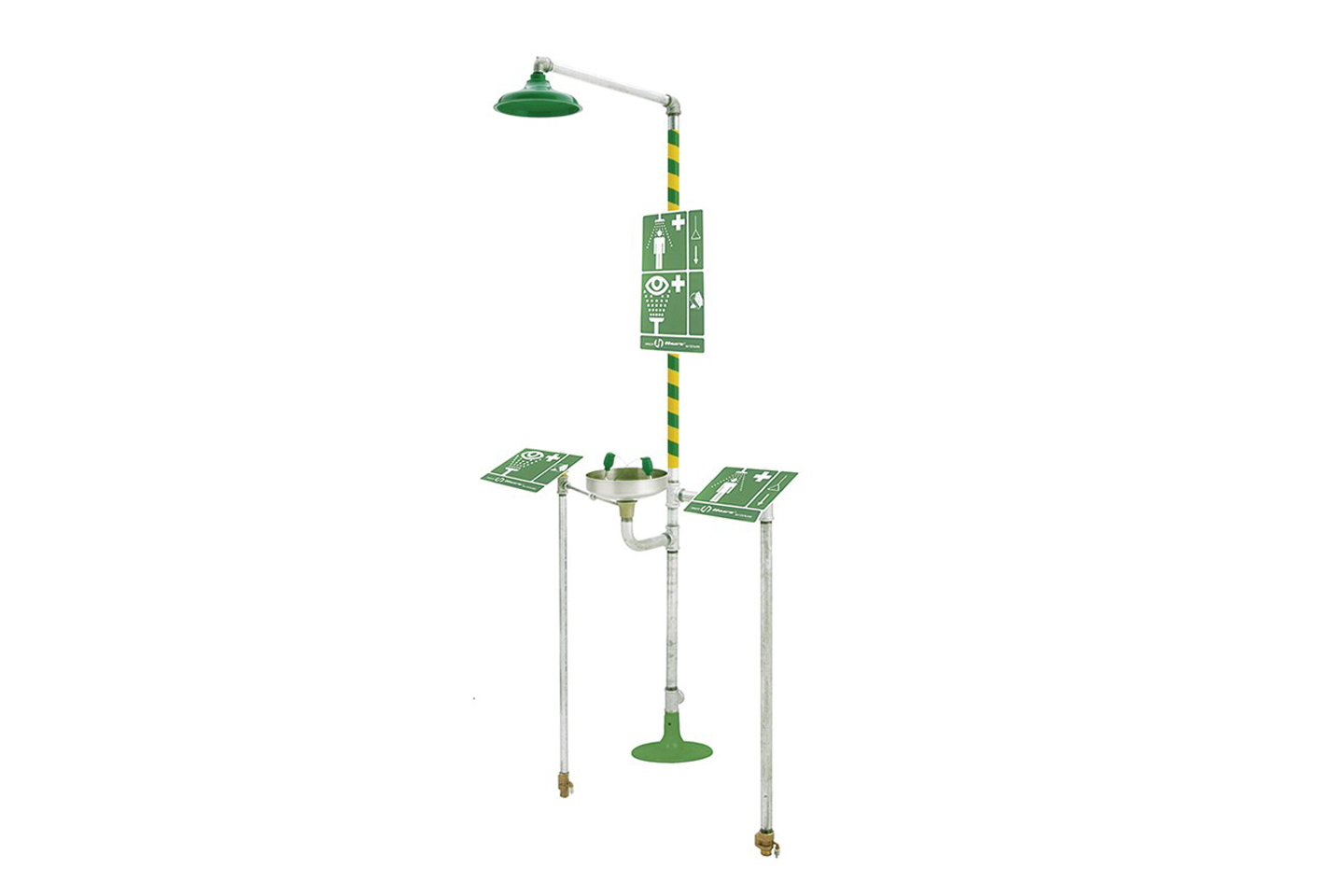

Model 8300FP, freeze protected, combination shower and Soft-Flo eyewash with stainless steel receptor and AXION MSR®® showerhead.



Description

The Haws freeze protected 8300FP combines the use of an ABS showerhead and anti-surge Soft-Flo eyewash heads for the irrigation process. Emergency combination unit is equipped with an in-line 50 x 50 mesh water strainer and pop-off dust covers, so when debris is present, the irrigation process stays protected. Virtually eliminating mishaps, the unit’s safety features include: universal emergency sign, high visibility stripe, two labeled push plates, and two self-draining bleed valves to protect from internal freezing.

  • A great addition to unsafe environments where the eyes and body may be exposed to corrosive materials
  • Requires minimal maintenance and is equipped with test card to record weekly testing
  • Reducing installation time, eyewash is pre-built and fully water/pressure tested
  • Solid galvanized steel construction make for one sturdy piece of emergency equipment

Downloads


File File size
pdf Haws Model 8300fp Specsheet 2021 230 KB

Technical Details

Model 8300FP freeze protected combination shower and eyewash shall include an AXION MSR®® showerhead with integral self-regulating flow control, stainless steel 11″ (27.9 cm) round bowl, stainless steel eyewash yoke assembly with Soft-Flo ABS plastic eyewash anti-surge heads with integral flow controls and dust covers, two self-draining bury valves with available frost-line depths of 24″and 42″ (61 and 106.7 cm) depths, two large zinc-plated steel push plates with universal graphics, powder-coated cast-iron 9″ (22.9 cm) diameter floor flange, universal sign, 3/4″ NPT and 1-1/4″ NPT inlet, and 1-1/4″ NPT outlet. REQUIRES MODEL MK8A & MK81A PRICED SEPARATELY.
