AXION® MSR Wall Mount Eye/Face Wash

Part Ref: EU-7260

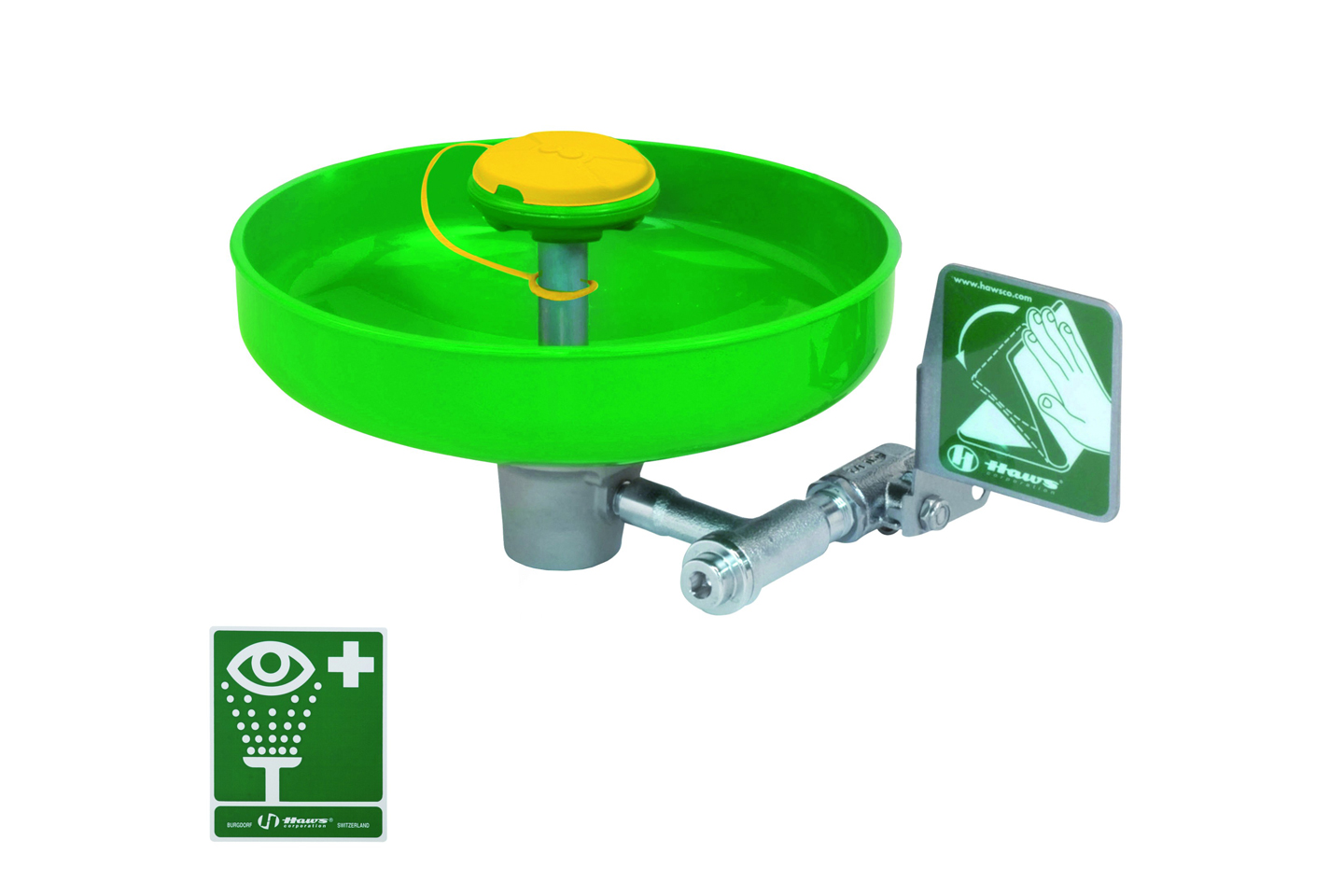

Model 7260-7270 wall mounted, plastic bowl eye/face wash with AXION® MSR eye/face wash head. Without wall bracket



Description

Model 7260-7270 wall mounted eye and face wash features the medically acclaimed AXION MSR eye/face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors’ office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature’s ocular cavity drain.

  • Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
  • Unit features a round 11″ (27.9 cm) green ABS plastic receptor and aluminum
  • Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
  • Supply: 1/2″ NPT. Waste: 1- 1/4″ NPT

Technical Details

Model 7260-7270 wall mounted eye/face wash shall include a green ABS plastic 11″ (27.9 cm) bowl, an AXION® MSR eye/face wash head shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit shall also include a yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2″ NPT inlet, and 1-1/4″ NPT waste.

Downloads


File File size
pdf haws_model_eu_7260_specsheet 2021 185 KB
