AXION® MSR Barrier-Free Recessed Shower and Eye/Face Wash

Part Ref: EU-8355WCC

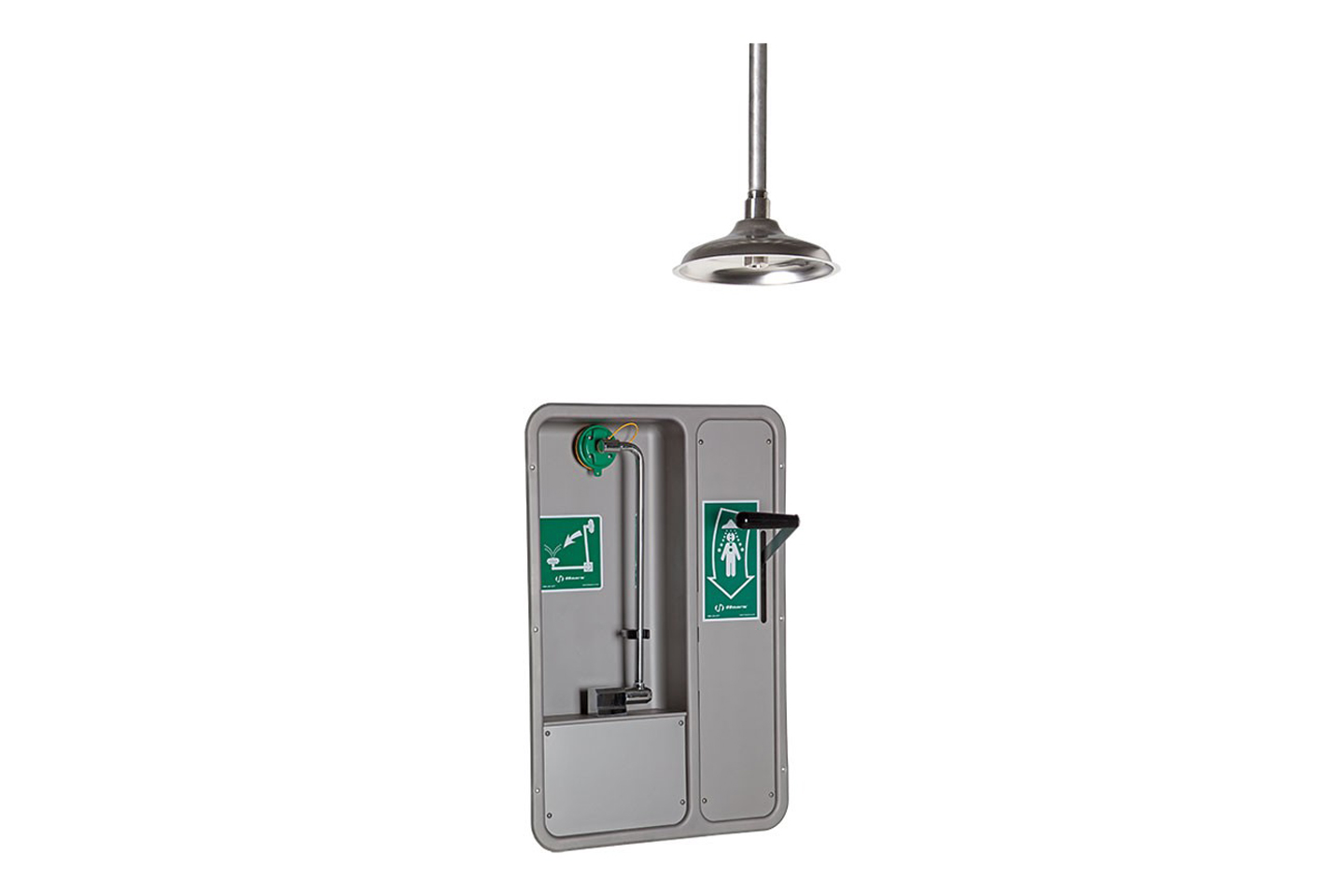

Model 8355WCC, barrier-free, wall-mounted, fully recessed combination shower and eye/face wash with AXION® MSR eye/face wash head and ceiling-mounted showerhead.



Description

Model 8355WCC barrier-free, wall-mounted, fully recessed combination shower and eye/face wash features the medically acclaimed AXION MSR eye/face wash head assembly (patent pending). The revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors’ office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature’s ocular cavity drain. AXION MSR also offers a new hydrodynamic shower design that minimizes the strong physical pressure that drives the water to the outer rim of normal showerheads, making the distribution equal across the entire footprint of the flow. Better use of the water flowing through the shower makes it more effective while providing a more comfortable environment by breaking the streams of water into smaller individual droplets.

  • Flexible design of the shower allows for flush in the ceiling mounting, or to hang down from the ceiling
  • Easy access exterior mounted in-line strainer
  • 18 Gauge Type 304 Stainless Steel recessed cabinet is a deep-drawn heavy duty structure with smudge resistant bead blast finish
  • Reducing installation time, eyewash and valve assembly are pre-built and fully water/pressure tested

Technical Details

Model 8355WCC barrier-free combination shower and eye/face wash shall include an AXION® MSR eye/face wash head shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral flow control. Unit shall also include the AXION MSR hydrodynamic design stainless steel showerhead with flow control, a fully recessed wall mounted 18 Gauge, Type 304 stainless steel deep-drawn cabinet, wheelchair accessibility, and polished chrome-plated brass pull-down eye/face wash valve with easy access in-line strainer. Unit shall also include brass pipe and fittings, a front-access maintenance panel, universal sign, 1″ NPT(F) inlet. Operating pressure is 30 – 90 psi (2.1 – 6.2 bar).

Downloads


File File size
pdf Haws Model 8355wcc Specsheet 2021 230 KB
